Infinova CCTV Speed Dome Camera |
 |
|
 |
| |

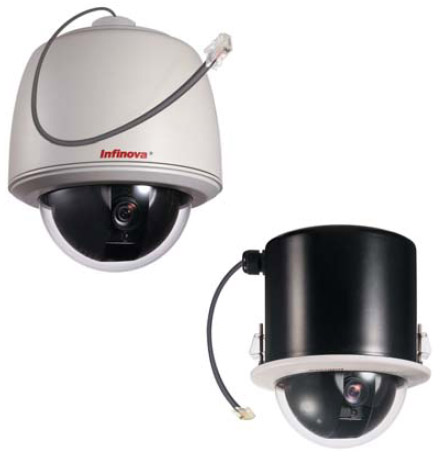

Infinova V1720 Speed Dome Camera |
|
Specifications |
|
 |
|
 |
|
| |
|
|
|
| |
V1720N-L Series Indoor in-Ceiling and Bracket Mount IP PTZ Domes
- Sony & Hitachi cameras
- Advanced 1/4" DSP CCD camera
- >480 lines of resolution
- 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 zoom available
- Image Stabilization on 35X model
- Built-in video over IP server, no additional equipment required
- MPEG-4 video compression for optimum picture quality and transmission speed
- View and control cameras from anywhere using a standard web browser
- Up to 128 presets with 16 characters each
- Auto Iris (AI), Auto Focus (AF), Back Light Compensation (BLC)
- Wide dynamic range on the 35X and 36X models
- Proportional high-speed pan/tilt and automatic flip
- Password protection
- Up to 24 advanced spherical privacy zones
- 16 video blanking sectors
- 4 programmable patterns
- Automatic home position
- Internal multi-protocol receiver/driver
- PTZ Data including RS-422 and RS-485
- 4 alarm inputs with programmable output
- Built-in surge and lightning protection
- Easy to install with quick and simple electrical connections
- Exceeds IP66 Specifications
- Offer network service QoS
- Vandal-resistant option available (polycarbonate)
|
|
General
Optical Zoom: 18X, 22X, 23X, 26X, 35X, 36X
Digital Zoom: 12X (all versions)
Image Stabilization 35X zoom
Programmable Presets
RS-422/485: Up to 128
RJ-45 Connectors: 1
Programmable Patterns: 4
Programmable Areas: 16
Spherical Privacy Zones: Up to 24
Video Blanking Sectors: 16
Image Mirror Function: Yes
Auto Synchronization
Line-Locked: Remote V-phase adjustment
Internal: Built-in sync generator
Alarm Inputs: 4 Photo-couple contacts/ 7mA @12 VDC
Alarm Outputs: 1 Open-collector drivers @12 VDC, 50 mA
IP Specifications
Video Standards: ISO/IEC 14496 (MPEG-4)
Data Rate: 9.6 kBit/s - 4 MBit/s
Video Resolution: 704 x 576 (4CIF: 30 fps); 704 x 288 (2 CIF: 30 fps); 352 x 576 (Half D1: 25 resp. 30 fields/s);352 x 288 (CIF: 25 resp. 30 fps); 176 x 144 (QCIF 25 resp. 30 fps)
Overall Delay: 100 ms
Network Connection: 10/100M Base-T
Network Protocols: ATP, Telnet, ODP, TCP, IP, HTTP, IGMP, ICMP, ARP, SNMP
Mechanical
Manual Pan/Tilt Speed: 0.5° ~ 90° per second (0.5° ~ 180° per second for 35X and 36X) (based on zoom position)
Preset Pan/Tilt Speed: 240° per second, maximum (200° per second, maximum for 35X and 36X)
Pan Travel: 360° continuous
Tilt Travel: -3° ~ 90°
Pan/Tilt Accuracy: ±1° (±0.3° for 35X and 36X)
Zoom/Focus Accuracy: ±0. 5%
Motor: Stepping Motor
Product Weight: 6.19 lbs. (2.8 kg)
Product Dimension: 10.83"×Φ8.58" (275mm×Φ218mm)
Electrical
Input Voltage: 12 VDC, 24 VAC
Power Consumption: 12 VDC:17 watts; 24 VAC:27 watts
Power On In-Rush Current: 12 VDC, 4 amps (maximum); 24 VAC, 2 amps (maximum)
Environment
Operating Temperature: 14°F ~ 104°F (-10°C ~ 40°C)
Fan & Heater: Continuous fan; auto-start heater
Humidity: 0~90% RH (Non-condensing)
Compliance FCC, CE
ISO 9001:2000
Protocols Supported: INFINOVA, PELCO-P/D, Up the Coax |
|
|
|
|
|
| |
|
|
|
| |

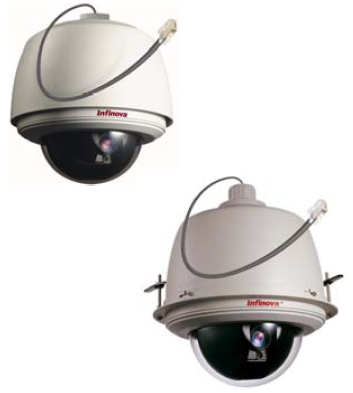

Infinova V1740N Speed Dome Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
V1740N-L Series Outdoor in-Ceiling and Bracket Mount IP PTZ Domes
- Sony & Hitachi cameras
- Advanced 1/4" DSP CCD camera
- >480 lines of resolution
- 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 zoom available
- Image Stabilization on 35X model
- Built-in video over IP server, no additional equipment required
- MPEG-4 video compression for optimum picture quality and transmission speed
- View and control cameras from anywhere using a standard web browser
- Up to 128 presets with 16 characters each
- Auto Iris (AI), Auto Focus (AF), Back Light Compensation (BLC)
- Wide dynamic range on the 35X and 36X models
- Proportional high-speed pan/tilt and automatic flip
- Password protection
- Up to 24 advanced spherical privacy zones
- 16 video blanking sectors
- 4 programmable patterns
- Automatic home position
- Internal multi-protocol receiver/driver
- PTZ Data including RS-422 and RS-485
- 4 alarm inputs with programmable output
- Built-in surge and lightning protection
- Anti-ice / Anti-mist, built-in heater and air circulating system available
- Easy to install with quick and simple electrical connections
- Exceeds IP66 and NEMA 4X Specifications
- Offer network service QoS
- Vandal-resistant option available (polycarbonate)
|
|
General
Optical zoom: 18X, 22X, 23X, 26X, 35X, 36X
Digital zoom: 12X (all versions)
Image Stabilization: 35X zoom
Programmable Presets
RS-422/485: Up to 128
RJ-45 Connectors: 1
Programmable Patterns: 4
Programmable Areas: 16
Spherical Privacy Zones: Up to 24
Video Blanking Sectors: 16
Image Mirror Function: Yes
Auto Synchronization
Line-Locked: Remote V-phase adjustment
Internal: Built-in sync generator
Alarm Inputs: 4 Photo-couple contacts/ 7mA @12 VDC
Alarm Outputs: 1 Open-collector drivers @12 VDC, 50 mA
IP Specifications
Video Standards: ISO/IEC 14496 (MPEG-4)
Data Rate: 9.6 kBit/s - 4 MBit/s
Video Resolution:
704 x 576 (4CIF: 30 fps);704 x 288 (2 CIF: 30 fps);352 x 576 (Half D1: 25 resp. 30 fields/s);352 x 288 (CIF: 25 resp. 30 fps);176 x 144 (QCIF 25 resp. 30 fps)
Overall Delay: 100 ms
Network Connection: 10/100M Base-T
Network Protocols: ATP, Telnet, ODP, TCP, IP, HTTP, IGMP,ICMP, ARP, SNMP
Mechanical
Manual Pan/Tilt Speed: 0.5° ~ 90° per second (0.5° ~ 180° per second for 35X and 36X) (based on zoom position)
Preset Pan/Tilt Speed: 240° per second, maximum (200° per second, maximum for 35X and 36X)
Pan Travel: 360° continuous
Tilt Travel: -3° ~ 90°
Pan/Tilt Accuracy: ±1° (±0.3° for 35X and 36X)
Zoom/Focus Accuracy: ±0. 5%
Motor: Stepping Motor
Product Weight: 8.44 lbs. (3.82 kg)
Product Dimension: 10.83"×Φ9.45" (275mm×Φ240mm)
Electrical
Input Voltage: 12 VDC, 24 VAC
Power Consumption: 12 VDC:27 watts; 24VAC: 52 watts
Power On In-Rush Current: 12 VDC, 4 amps (maximum); 24 VAC, 2 amps (maximum)
Environment
Operating Temperature: -40°F ~ 122°F (-40°C ~ 50°C)
Fan & Heater: Continuous fan; auto-start heater
Humidity: 0~90% RH (Non-condensing)
Compliance FCC, CE
ISO 9001:2000
Protocols Supported: INFINOVA, PELCO-P/D, Up the Coax |
|
|
|
|
|
| |
|
|
|
| |

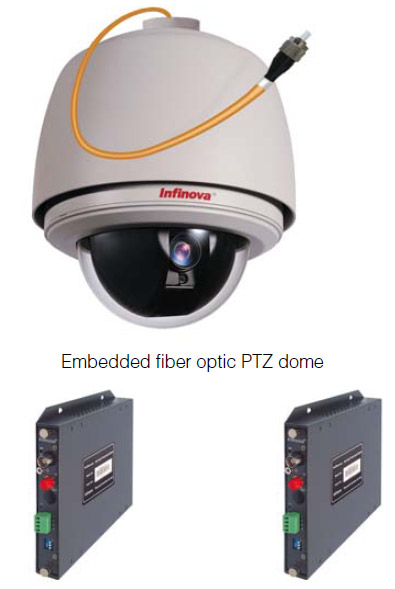

Infinova V1700 M / V1700S Speed Dome Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
Features
- Sony cameras
- Advanced 1/4" DSP CCD camera
- >480 lines of resolution
- 18X12, 26X12 and 36X12 zoom available
- Up to 128 presets with 16 characters each
- Auto Iris (AI), Auto Focus (AF), Back Light Compensation (BLC)
- Wide dynamic range on the 36X model
- Proportional high-speed pan/tilt and automatic flip
- Housing features built-in non-volatile memory for automatic download to new camera
- Password protection
- Up to 24 advanced spherical privacy zones
- 16 video blanking sectors
- 4 programmable patterns
- Automatic home position
- Internal multi-protocol receiver/driver
- PTZ Data including RS-422 and RS-485
- 4 alarm inputs with programmable output
- Built-in surge and lightning protection
- Anti-ice / Anti-mist, built-in heater and air circulating system available
- Easy to install with quick and simple electrical connections
- Exceeds IP66 and NEMA 4X Specifications
- Vandal-resistant option available (polycarbonate)
|
|
General
Optical Zoom: 18X, 26X, 36X
Digital Zoom: 12X (all versions)
Programmable Presets
RS-422/485: up to 128
RJ-45 Connectors: 1
Programmable Patterns: 4
Programmable Areas: 16
Spherical Privacy Zones: Up to 24
Video Blanking Sectors: 16
Image Mirror Function: Yes
Auto Synchronization
Line-Locked: Remote V-phase adjustment
Internal: Built-in sync generator
Alarm Inputs: 4 Photo-couple contacts/ 7mA @12 VDC
Alarm Outputs: 1 Open-collector drivers @12 VDC, 50 Ma
Mechanical
Manual Pan/Tilt Speed: 0.5° ~ 90° per second (0.5° ~ 180° per second for 36X) (based on zoom position)
Preset Pan/Tilt Speed: 240° per second, maximum (200° per second, maximum for 36X)
Pan Travel: 360° continuous
Tilt Travel: -3° ~ 90°
Pan/Tilt Accuracy: ±1° (±0.3° for 36X)
Zoom/Focus Accuracy: ±0. 5%
Motor: Stepping Motor
Product Dimension: Indoor:10.83" x Φ8.58"(275mm x Φ218mm)
Outdoor:10.83" x Φ9.45"(275mm x Φ240mm)
Electrical
Input Voltage: 24 VAC
Power Consumption: Outdoor; 24VAC: 57 watts Indoor; 24VAC: 25 watts
Power On In-Rush Current: 2 amps (max)
Environment
Operating Temperature: -40°F ~ 122°F (-40°C ~ 50°C)
Storage Temperature: -40°F ~ 158°F (- 40°C ~ 70°C)
Fan & Heater: Continuous fan; auto-start heater
Humidity: 0~90% RH (Non-condensing)
Compliance FCC, CE
ISO 9001:2000
Protocols Supported: INFINOVA, PELCO-P/D, Up the Coax |
|
|
|
|
|
|
| |
|
