Cynix CCTV Speed Dome Cameras |
 |
|
 |
| |

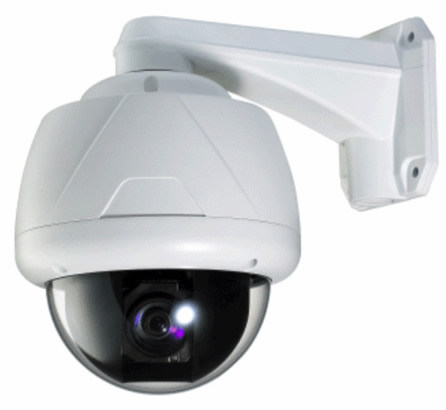

Cynix EAO-P37T X444 Zoom Control Speed Dome Camera |
|
Specifications |
|
 |
|
 |
|
| |
|
|
|
| |
Fast & Silent Motion
- No Accumulative Error with Preset Function
- Shortest Path by Vector Drive Technology
- High Accuracy with Micro-Stepping Control Technology
- Smooth Motion at High Zoom Magnification Mode
- Lightening Speed(MAX. 360°/sec)&Smooth Manual Speed
- (MIN. 0.05°/sec)
- Lowest Noise & Lowest Vibration
- Endless 360° Pan Rotation
Superior Zoom Camera
- X444 Zoom Control (Optical X37, Digital X12)
- Day & Night (IR Cut Filter)
- HLC (High Light Compensation)
- DIS (Digital Image Stabilization)
- SNR (Super Noise Reduction)
Powerful Functions
- Independent Preset Parameter Setup (AE, WB and etc.)
- 127 Preset Positions with Alphanumeric Labels
- 4 Pattern, 8 Swing and 8 Group Functions
- 8 Privacy Masks (Spherical Coordinates)
- Auto Flip, Auto Parking, Power-up Action
- Frame Freeze Function
- On-Screen Display On/Off
- Small Size / Weatherproof Structure / IP67
- Vandal-Proof (Dome Cover : PC / Housing & Accessories : AL)
|
|
| MODEL |
EAO-N37TW/EAO-N37TC |
EAO-P37TW/EAO-P37TC |
| Signal System |
NTSC |
PAL |
| Camera |
Image Device |
Sony 1/4" Double Density Interline Transfer CCD |
| Effective Pixels |
380K Pixels [768(H) x 494(V)] |
440K Pixels [752(H) x 582(V)] |
| H. Resolution |
550 TV Lines (Color) / 680 TV Lines (B/W) |
| S/N Ratio |
50 dB(AGC Off) |
| Zoom |
X37 Optical Zoom and X12 Digital Zoom |
| Focal Length |
f=3.5 ~ 129.5 mm / F1.6 ~ 3.9 |
| Angle of View |
H : 55.5°(Wide) ~ 1.59°(Tele) / V : 42.5°(Wide) ~ 1.19°(Tele) |
| Zoom Speed |
2.5 sec. (Wide to Tele) |
| Min. Illumination |
0.7 Lux (Color) / 0.06 Lux (B/W) / 50 IRE, F1.6 |
| Day & Night |
Auto / Day / Night (IR Cut Filter) |
| Focus |
Auto / Manual / Semi-Auto |
| Iris |
Auto / Manual |
| Shutter Speed |
x256 ~ 1/120000 sec |
| AGC |
Low / Middle / High / Manual / Off |
| White Balance |
Auto / Manual (Red & Blue Gain Adjustable, 1,800°K ~ 10,500°K) |
| BLC |
BLC / HLC / Off |
| Flickerless |
Selectable |
| SSNR |
Low / Middle / High / Off |
| Privacy Mark |
8 Masks with Spherical Coordinates |
| Image Stabilization |
On / Off |
| Pan/Tilt |
Range |
Pan : 360°(Endless) / Tilt : 90° |
| Pan/Tilt Speed |
Preset : 360°/sec |
| Manual : 0.05°~ 360°/ sec (Zoom Proportional) |
| Swing : 1~180°/sec |
| Preset |
127 Presets with Labels / Independent Preset Parameter Setup |
| Pattern |
4 Patterns (Approx. 5 Minutes for Each Pattern) |
| Swing |
8 Swings |
| Group |
8 Groups
(MAX. 20 Actions with The Combination of Preset, Pattern and Swing / 1 Group) |
| Other Functions |
Auto Flip, Auto Parking, Power-up Action & etc |
| General |
Communication |
RS-485 |
| Protocol |
Pelco-D, Pelco-P Selectable |
| OSD |
English On / Off |
| Dimension |
Dome : ø 150 mm / ø 5.9” |
| Housing : 192(ø) x 190.3(H) mm / 7.6” (ø) x 7.5” (H) |
| Weight |
Approx. 3 Kg / 6.6 lbs (Without Bracket) |
| Material |
Dome : Poly Carbonate / Housing : Aluminum |
| Environment |
EAI : Indoor |
| EAO : Outdoor |
Fan/Heater
(EAO Model Only) |
Built-in / Fan : Always On /
Heater : On below Internal Temperature 10°C / 50°F |
| Operating Temp. |
EAI Model : 0°C ~ 40°C / 32°F ~ 104°F |
| EAO Model : -30°C ~ 50°C / -22°F ~ 122°F |
| Power |
EAI Model : AC 24V / 0.4A |
| EAO Model : AC 24V / 1.5A |
| Sensor In/Out |
3 Inputs (Photo Coupler Type) / 1 Output (Relay Type) |
| Network |
Optional / IP Addressable with H.264 /
DC 12V Model Only / Additional 0.5A required. |
|
|
|
|
|
|
| |
|
|
|
| |
Cynix EAO-P33T X396 Zoom Control Speed Dome Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
Fast & Silent Motion
-
No Accumulative Error with Preset Function
- Shortest Path by Vector Drive Technology
- High Accuracy with Micro-Stepping Control Technology
- Smooth Motion at High Zoom Magnification Mode
- Lightening Speed(MAX. 360°/sec)&Smooth Manual Speed
- (MIN. 0.05°/sec)
- Lowest Noise & Lowest Vibration
- Endless 360° Pan Rotation
Superior Zoom Camera
- X396 Zoom Control (Optical X33, Digital X12)
- Day & Night (IR Cut Filter)
- HLC (High Light Compensation)
- DIS (Digital Image Stabilization)
- SNR (Super Noise Reduction)
Powerful Functions
- Independent Preset Parameter Setup (AE, WB and etc.)
- 127 Preset Positions with Alphanumeric Labels
- 4 Pattern, 8 Swing and 8 Group Functions
- 8 Privacy Masks (Spherical Coordinates)
- Auto Flip, Auto Parking, Power-up Action
- Frame Freeze Function
- On-Screen Display On/Off
- Small Size / Weatherproof Structure / IP67
- Vandal-Proof (Dome Cover : PC / Housing & Accessories : AL)
|
|
| MODEL |
EAO-N33TW/EAO-N33TC |
EAO-P33TW/EAO-P33TC |
| Signal System |
NTSC |
PAL |
| Camera |
Image Device |
1/4" SONY Super HAD Color CCD |
| Effective Pixels |
380K Pixels [768(H) x 494(V)] |
440K Pixels [752(H) x 582(V)] |
| H. Resolution |
550 TV Lines (Color) / 680 TV Lines (B/W) |
| S/N Ratio |
50 dB(AGC Off) |
| Zoom |
X33 Optical Zoom and X12 Digital Zoom |
| Focal Length |
f=3.5 ~ 115.5 mm / F1.6 ~ 3.6 |
| Angle of View |
H : 55.5°(Wide) ~ 1.77°(Tele) / V : 42.5°(Wide) ~ 1.33°(Tele) |
| Zoom Speed |
2.2 sec. (Wide to Tele) |
| Min. Illumination |
0.4 Lux (Color) / 0.02 Lux (B/W) / 50 IRE, F1.6 |
| Day & Night |
Auto / Day / Night (IR Cut Filter) |
| Focus |
Auto / Manual / Semi-Auto |
| Iris |
Auto / Manual |
| Shutter Speed |
x256 ~ 1/120000 sec |
| AGC |
Low / Middle / High / Manual / Off |
| White Balance |
Auto / Manual (Red & Blue Gain Adjustable, 1,800°K ~ 10,500°K) |
| BLC |
BLC / HLC / Off |
| Flickerless |
Selectable |
| SSNR |
Low / Middle / High / Off |
| Privacy Mark |
8 Masks with Spherical Coordinates |
| Image Stabilization |
On / Off |
| Pan/Tilt |
Range |
Pan : 360°(Endless) / Tilt : 90° |
| Pan/Tilt Speed |
Preset : 360°/sec |
| Manual : 0.05°~ 360°/ sec (Zoom Proportional) |
| Swing : 1~180°/sec |
| Preset |
127 Presets with Labels / Independent Preset Parameter Setup |
| Pattern |
4 Patterns (Approx. 5 Minutes for Each Pattern) |
| Swing |
8 Swings |
| Group |
8 Groups
(MAX. 20 Actions with The Combination of Preset, Pattern and Swing / 1 Group) |
| Other Functions |
Auto Flip, Auto Parking, Power-up Action & etc |
| General |
Communication |
RS-485 |
| Protocol |
Pelco-D, Pelco-P Selectable |
| OSD |
English On / Off |
| Dimension |
Dome : ø 150 mm / ø 5.9” |
| Housing : 192(ø) x 190.3(H) mm / 7.6” (ø) x 7.5” (H) |
| Weight |
Approx. 3 Kg / 6.6 lbs (Without Bracket) |
| Material |
Dome : Poly Carbonate / Housing : Aluminum |
| Environment |
EAI : Indoor |
| EAO : Outdoor |
Fan/Heater
(EAO Model Only) |
Built-in / Fan : Always On /
Heater : On below Internal Temperature 10°C / 50°F |
| Operating Temp. |
EAI Model : 0°C ~ 40°C / 32°F ~ 104°F |
| EAO Model : -30°C ~ 50°C / -22°F ~ 122°F |
| Power |
EAI Model : AC 24V / 0.4A |
| EAO Model : AC 24V / 1.5A |
| Sensor In/Out |
3 Inputs (Photo Coupler Type) / 1 Output (Relay Type) |
| Network |
Optional / IP Addressable with H.264 /
DC 12V Model Only / Additional 0.5A required. |
|
|
|
|
|
|
| |
|
|
|
| |
Cynix EAO-P27 X324 Zoom Control Speed Dome Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
Fast & Silent Motion
- No Accumulative Error with Preset Function
- Shortest Path by Vector Drive Technology
- High Accuracy with Micro-Stepping Control Technology
- Smooth Motion at High Zoom Magnification Mode
- Lightening Speed(MAX. 360°/sec)&Smooth Manual Speed
- (MIN. 0.05°/sec)
- Lowest Noise & Lowest Vibration
- Endless 360° Pan Rotation
Superior Zoom Camera
- X324 Zoom Control (Optical X27, Digital X12)
- Day & Night (IR Cut Filter)
- HLC (High Light Compensation)
- DIS (Digital Image Stabilization)
- SNR (Super Noise Reduction)
Powerful Functions
- Independent Preset Parameter Setup (AE, WB and etc.)
- 127 Preset Positions with Alphanumeric Labels
- 4 Pattern, 8 Swing and 8 Group Functions
- 8 Privacy Masks (Spherical Coordinates)
- Auto Flip, Auto Parking, Power-up Action
Frame Freeze Function
- On-Screen Display On/Off
- Small Size / Weatherproof Structure / IP67
- Vandal-Proof (Dome Cover : PC / Housing & Accessories : AL)
|
|
| MODEL |
EAO-N27TW/EAO-N27TC |
EAO-P27TW/EAO-P27TC |
| Signal System |
NTSC |
PAL |
| Camera |
Image Device |
1/4" SONY Super HAD Color CCD |
| Effective Pixels |
380K Pixels [768(H) x 494(V)] |
440K Pixels [752(H) x 582(V)] |
| H. Resolution |
550 TV Lines (Color) / 680 TV Lines (B/W) |
| S/N Ratio |
50 dB(AGC Off) |
| Zoom |
X27 Optical Zoom and X12 Digital Zoom |
| Focal Length |
f=3.5 ~ 94.5 mm / F1.6 ~ 2.9 |
| Angle of View |
H : 55.5°(Wide) ~ 2.24°(Tele) / V : 42.5°(Wide) ~ 1.79°(Tele) |
| Zoom Speed |
1.8 sec. (Wide to Tele) |
| Min. Illumination |
0.4 Lux (Color) / 0.02 Lux (B/W) / 50 IRE, F1.6 |
| Day & Night |
Auto / Day / Night (IR Cut Filter) |
| Focus |
Auto / Manual / Semi-Auto |
| Iris |
Auto / Manual |
| Shutter Speed |
x256 ~ 1/120000 sec |
| AGC |
Low / Middle / High / Manual / Off |
| White Balance |
Auto / Manual (Red & Blue Gain Adjustable, 1,800°K ~ 10,500°K) |
| BLC |
BLC / HLC / Off |
| Flickerless |
Selectable |
| SSNR |
Low / Middle / High / Off |
| Privacy Mark |
8 Masks with Spherical Coordinates |
| Image Stabilization |
On / Off |
| Pan/Tilt |
Range |
Pan : 360°(Endless) / Tilt : 90° |
| Pan/Tilt Speed |
Preset : 360°/sec |
| Manual : 0.05°~ 360°/ sec (Zoom Proportional) |
| Swing : 1~180°/sec |
| Preset |
127 Presets with Labels / Independent Preset Parameter Setup |
| Pattern |
4 Patterns (Approx. 5 Minutes for Each Pattern) |
| Swing |
8 Swings |
| Group |
8 Groups
(MAX. 20 Actions with The Combination of Preset, Pattern and Swing / 1 Group) |
| Other Functions |
Auto Flip, Auto Parking, Power-up Action & etc |
| General |
Communication |
RS-485 |
| Protocol |
Pelco-D, Pelco-P Selectable |
| OSD |
English On / Off |
| Dimension |
Dome : ø 150 mm / ø 5.9” |
| Housing : 192(ø) x 190.3(H) mm / 7.6” (ø) x 7.5” (H) |
| Weight |
Approx. 3 Kg / 6.6 lbs (Without Bracket) |
| Material |
Dome : Poly Carbonate / Housing : Aluminum |
| Environment |
EAI : Indoor |
| EAO : Outdoor |
Fan/Heater
(EAO Model Only) |
Built-in / Fan : Always On /
Heater : On below Internal Temperature 10°C / 50°F |
| Operating Temp. |
EAI Model : 0°C ~ 40°C / 32°F ~ 104°F |
| EAO Model : -30°C ~ 50°C / -22°F ~ 122°F |
| Power |
EAI Model : AC 24V / 0.4A |
| EAO Model : AC 24V / 1.5A |
| Sensor In/Out |
3 Inputs (Photo Coupler Type) / 1 Output (Relay Type) |
| Network |
Optional / IP Addressable with H.264 /
DC 12V Model Only / Additional 0.5A required. |
|
|
|
|
|
|
| |
|
