Infinova V1043 IR Camera |
|
Specifications |
|
 |
|
 |
|
| |
|
|
|
| |
V1043 Series 1/3" Infrared Illumination Camera
The V1043 series infrared illumination cameras provide quality video images even in total darkness and a waterproof housing provides protection from rain. With 12 infrared LEDs, illumination is provided up to 33 ft (10 m) away. In addition, the Sony 1/3" HAD CCD sensor is specifically designed to maximize the effects of infrared light. The infrared LEDs are designed for extended life and a daylight sensor allows them to be turned off automatically when not needed.
Features
- Color camera with SONY 1/3" HAD CCD sensor in waterproof metal case
- Employs Digital Signal Processor (DSP) chip-set for image control
- Robust, built-in 12 infrared LEDs low illumination environment
- Long life infrared LED
- Effective range for projection distance is up to 33ft (10m)
- High sensitivity, low smear, excellent anti-blooming, and high S/N ratio
- Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (AWB)
- Includes board lens and is furnished with mounting bracket
- Built-in environment illumination detection and control circuit that can turn on/off the infrared illumination automatically
- Single power and signal connecting wire
- 12 VDC low power consumption
- Outdoor IP67
|
|
Image Sensor: Color SONY 1/3" HAD CCD Sensor
Effective Pixels (H×V): NTSC: 510×492; PAL: 500×582
Resolution: 380 lines
Minimum Illumination: 0.2 lux@F2.0 (0.0 lux with IR ON)
S/N Ratio: >48 dB
Auto Electronic Shutter: NTSC: 1/60 ~ 1/100,000 sec; PAL: 1/50 ~ 1/110,000 sec
Gamma Correction: 0.45
Auto White Balance: Yes (2500 K ~ 9500 K)
Auto Gain Control: Yes
Sync. System: Internal
Lens Furnished: Board Lens 3.6 mm / F2.0 (Optional: 4.3 / 6.0 / 8.0 / 12 mm)
Video Output: 1.0 Vp-p (75 ohm), BNC connector
Infrared Luminary: 12 pieces IR LED, life: 6000 Hrs
Wave Length: 850 nm
Projection Distance: Up to 33 ft (10 m)
Auto Power ON/OFF: CDS auto control
Illumination Active Limit: Under 10 lux
Power Supply: 12 VDC
Power Consumption: 3.5 W (IR ON); 1.4 W (IR OFF)
Waterproofing: Aluminum case, IP 67
Operating Temperature: 14°F ~ 122°F (-10°C ~ 50°C)
Weight: 0.75 lbs. (0.34 kg) |
|
|
|
|
|
|
| |
|
|
|
| |

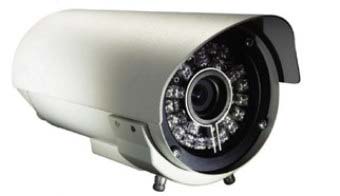

Infinova V1044B IR Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
V1044B Series 1/3" Outdoor Color IR Camera
Infinova' s V1044B series 1/3" outdoor color IR cameras feature built-in IR illuminator and 4.0~9.0 mm auto iris vari-focal lens. The V1044B series are available in NTSC or PAL version.
Features
- 1/3" Color Sony CCD Camera
- Built-in 4.0~9.0 mm vari-focal auto-iris lens
- High-resolution color video; 550TVL
- Minimum Illumination of 0.5 lux (0 lux w/ IR on)
- 28 LED' s; 25 meters minimum radiant distance
- AWB/ATW; BLC/AGC
- IP66 Environmental Rating
|
|
Image Sensor: 1/3" Color Sony Super HAD CCD
Environmental Rating: IP66
Effective Pixels (H x V): NTSC: 768 x 494; PAL: 752 x 582
Resolution: 550 TV lines
Minimum Illumination: 0.5 lux@1.4 (0.0 lux with IR on)
S/N Ratio: > 50 dB
Sync. Mode: Internal Sync. / Line Lock
Scanning System: 2:1 interlace
Gamma Correction: 0.45
Infrared:Number of LEDs: 28;Peak Wavelength: 850 nm;Radiant Distance: 25 meters minimum
Iris: Auto iris
Focal Length: 4.0 ~ 9.0 mm, F/1.6 vari-focal
Video Output: 1 Vp-p / 75 Ohms.
Power Supply: 12 VDC / 24 VAC
Power Consumption: 12 W
Operating Temperature: 14°F ~140°F (-10°C ~ 60°C)
Weight: 3.5 lbs. (1.6 kg)
Dimensions: 280 L×115 (Φ) mm; 11.0 L×4.5 (Φ) inches
Compliance FCC, CE
ISO 9001:2000 |
|
|
|
|
|
|
| |
|
|
|
| |
Infinova V1495M IR Camera |
|
Specifications |
|
|
|
|
|
| |
|
|
|
| |
V1495M Series Integrated PTZ Day/Night Camera System with IR Illuminator
The V1495M series integrated PTZ high definition day/night camera systems feature universal variable pan/tilt, infrared lighting, multi-functional decoder, character super imposing, and alarm input/output. This series integrates multiple functions into one efficient unit to reduce interconnections and increase reliability. These cameras are easy to install and maintain, light weight, flexible and simple to operate. They are available in 3.5~91.0 mm focal lengths.
Features
- Infrared LED range up to 260 ft. (80 m) for nighttime viewing
- Heavy duty die-cast aluminum casing
- Weatherproof standard IP66
- Shockproof; ideal for vehicle-mounted surveillance
- 360° continuous rotation, tilt angle up to 180°
- 6 patterns, each with 16 preset positions
- 128 preset positions
- Input voltage: 10.5 ~18 VDC
|
|
Image Sensor: 1/4" SONY CCD
Effective Pixels (H x V):V1495M-26: NTSC:768 x 494; PAL: 752 X 582
Sync. System: Internal
Video Output: VBS composite 1.0 Vp-p, 75 Ohm
White Balance: Auto/Manual
Resolution: 480 TV lines
Signal/Noise Ratio: V1495M-26: >50 dB
Electronic Shutter:V1495M-26: 1/3~1/10000 sec
Minimum Illumination: 0.0 lux
Focal Length: V1495M-26: f=3.5~91.0 mm
Iris & Zoom: Automatic/Manual
Pan Preset Speed: 100°/s
Tilt Preset Speed: 60°/s
Pan Speed: 0° ~ 80°/s
Tilt Speed: 0° ~ 40°/s
Pan Range: 360° continuously
Tilt Range: +90° ~ -90°
Preset Track: 128 presets, 6 tracks
Communication: Multi-protocol, baud rate from 2400 ~ 19200 Bps for optional, RS-485 control
Power Supply: 10.5 VDC ~ 18 VDC (50 VA)
Operating Temp: -31°F ~ 122°F (-35°C ~ 50°C)
Relative Humidity: 10-90 %
Weight: 13.26 lbs. (6 kg)
Shock: ≥4G
Environmental Rating: IP66 |
|
|
|
|
|
| |
|
