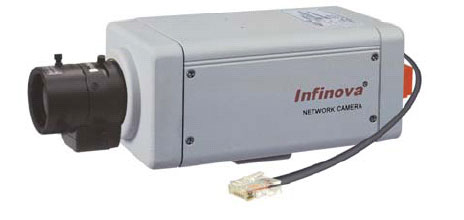

V6101-L Series IP Fixed Color Camera
Infinova' s V6101-L series IP fixed color cameras feature high resolution and good low light operation over IP Networks with 1/3" CCD sensor. As part of a complete solution, these IP cameras can be viewed and controlled from anywhere on the network and are compatible with Infinova' s sophisticated Video Management Software.

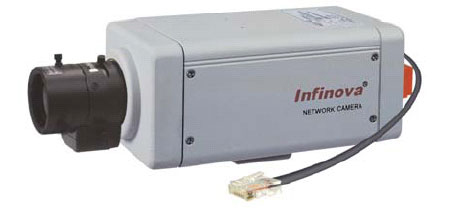

Infinova' s V6102-L series IP fixed day/night cameras feature high resolution and good low light operation over IP Networks with 1/3" CCD sensor. As part of a complete solution, these IP cameras can be viewed and controlled from anywhere on the network and are compatible with Infinova' s sophisticated Video Management Software.

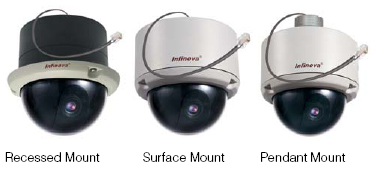

V6621 Series Indoor Vandal Resistant IP Color Fixed Minidome Camera

Infinova' s V6621 series indoor IP network color fixed minidome cameras feature a high resolution 1/3" CCD sensor and excellent low light operation. They offer high performance MPEG-4 video compression with high resolution D1 full motion images. They are available in a resolution of 520 lines at 0.5 lux with a 2.5~6 mm or 3.3~12 mm auto-iris vari-focal lens. The cameras are vandal resistant, designed for recessed, surface or pendant mount with 3-axis adjustment and require 12 VDC / 24 VAC / PoE for power. The cameras provide excellent image quality along with ease of installation.

Features

• Indoor Color IP Fixed Minidome Camera with SONY 1/3" EX-view CCD sensor

• High Resolution and Excellent Low Light Sensitivity

• Lens: 2.5~6 mm or 3.3~12 mm auto-iris, vari-focal

• Resolution/Sensitivity: 520 TVL at 0.5 lux

• Recessed, Surface or Pendant Mount, Vandal Resistant, 3-Axis adjustment

• MPEG-4 Encoding with D1 @ 30/25 fps

• Built-In Web Server

• Multiple IP Streams and Multicast support

• Password Protection

• Digital Signal Processor (DSP) for high quality image

• Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White
• Balance (ATW), Flickerless (F.L.), Backlight Compensation (BLC)

• NTSC/PAL Analog Video output

• Video and Power Cable included

• 12VDC/24VAC/PoE power supply

V6622 Series Indoor Vandal Resistant IP Day/Night Fixed Minidome Camera

Infinova' s V6622 series indoor IP network Day/Night fixed minidome cameras feature a high resolution 1/3" CCD sensor and excellent low light operation. They offer high performance MPEG-4 video compression with high resolution D1 full motion images. They are available in a resolution of 520 lines at 0.5 lux color / 0.01 lux B/W with a 2.5~6 mm or 3.3~12 mm auto-iris vari-focal lens. The cameras are vandal resistant, designed for recessed, surface or pendant mount with 3-axis adjustment and require 12 VDC / 24 VAC / PoE for power. The cameras provide excellent image quality along with ease of installation.

Features

• Indoor Day/Night IP Fixed Minidome Camera with SONY 1/3" EX-view CCD sensor
• High Resolution and Excellent Low Light Sensitivity
• Lens: 2.5~6 mm or 3.3~12 mm auto-iris, vari-focal
• Resolution/Sensitivity: 520 lines at 0.5 lux color / 0.01 lux B/W
• Automatic IR cut-off filter, Auto switch B/W and Color mode
• Recessed, Surface or Pendant Mount, Vandal Resistant, 3-Axis adjustment
• MPEG-4 Encoding with D1 @ 30/25 fps
• Built-In Web Server
• Multiple IP Streams and Multicast support
• Password Protection
• Digital Signal Processor (DSP) for high quality image
• Auto Electronic Shutter (AES), Auto Gain Control (AGC), Auto White Balance (ATW), Flickerless (F.L.), Backlight Compensation (BLC)
• NTSC/PAL Analog Video output
• Video and Power Cable included
• 12VDC/24VAC/PoE power supply

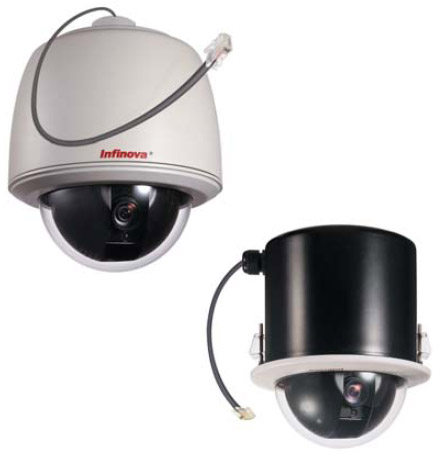

Infinova' s V1720N-L series represents a state-of-the-art line of indoor, in-ceiling and B racket mount IP PTZ dome cameras. This leading PTZ dome system is an ideal product for the changing environment that is today' s security industry. With IP based technology for network oriented security, the V1720N-L bridges the gap between IT and CCTV. Users can view, control, and even program IP PTZ domes from a PC connected to a work station using a standard web browser and Infinova' s on-screen simulated keyboard.
Digital video output utilizing MPEG-4 compression schemes deliver high-quality video at up to 30 fps. Built-in software utilizes a standard web-browser to view, control, and program the cameras. Infinova' s video management software can be used directly with the IP PTZ domes, providing an online virtual matrix switcher, or in conjunction with software platforms, which allow the video to be recorded on a dedicated server for storage.

Features

• Sony & Hitachi cameras
• Advanced 1/4" DSP CCD camera
• >480 lines of resolution
• 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 zoom available
• Image Stabilization on 35X model
• Built-in video over IP server, no additional equipment required
• MPEG-4 video compression for optimum picture quality and transmission speed
• View and control cameras from anywhere using a standard web browser
• Up to 128 presets with 16 characters each
• Auto Iris (AI), Auto Focus (AF), Back Light Compensation (BLC)
• Wide dynamic range on the 35X and 36X models
• Proportional high-speed pan/tilt and automatic flip
• Password protection
• Up to 24 advanced spherical privacy zones
• 16 video blanking sectors
• 4 programmable patterns
• Automatic home position
• Internal multi-protocol receiver/driver
• PTZ Data including RS-422 and RS-485
• 4 alarm inputs with programmable output
• Built-in surge and lightning protection
• Easy to install with quick and simple electrical connections
• Exceeds IP66 Specifications
• Offer network service QoS
• Vandal-resistant option available (polycarbonate)

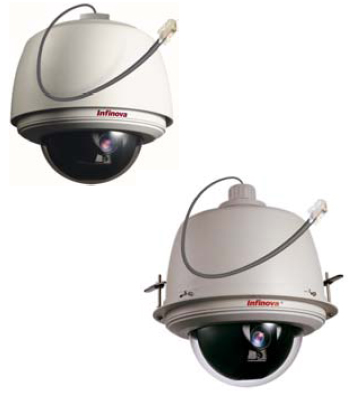

infinova' s V1740N-L series represents a state-of-the-art line of outdoor, in-ceiling and Bracket mount IP PTZ dome cameras. This leading PTZ dome system is an ideal product for the changing environment that is today' s security industry. With IP based technology for network oriented security, the V1740N-L bridges the gap between IT and CCTV. Users can view, control, and even program IP PTZ domes from a PC connected to a work station using a standard web browser and Infinova' s on-screen simulated keyboard.

Digital video output utilizing MPEG-4 compression schemes deliver high-quality video at up to 30 fps. Built-in software utilizes a standard web-browser to view, control, and program the cameras. Infinova' s video management software can be used directly with the IP PTZ domes, providing an online virtual matrix switcher, or in conjunction with software platforms, which allow the video to be recorded on a dedicated server for storage.

As with Infinova' s standard PTZ domes, users can choose among 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 optical/ digital zoom, ensuring their ability to find the right camera for their project. Digital Signal Processing technology provides enhanced clarity, color and detail, with the day/night camera; usable images can be delivered even in extremely low light conditions. Separate definable privacy zones can be set by administrators to prevent users from viewing restricted areas. The PTZ dome' s direction indicators; which can be displayed on the monitor, denote the direction in which it is moving.

Features

• Sony & Hitachi cameras
• Advanced 1/4" DSP CCD camera
• >480 lines of resolution
• 18X12, 22X12, 23X12, 26X12, 35X12 and 36 X12 zoom available
• Image Stabilization on 35X model
• Built-in video over IP server, no additional equipment required
• MPEG-4 video compression for optimum picture quality and transmission speed
• View and control cameras from anywhere using a standard web browser
• Up to 128 presets with 16 characters each
• Auto Iris (AI), Auto Focus (AF), Back Light Compensation (BLC)
• Wide dynamic range on the 35X and 36X models
• Proportional high-speed pan/tilt and automatic flip
• Password protection
• Up to 24 advanced spherical privacy zones
• 16 video blanking sectors
• 4 programmable patterns
• Automatic home position
• Internal multi-protocol receiver/driver
• PTZ Data including RS-422 and RS-485
• 4 alarm inputs with programmable output
• Built-in surge and lightning protection
• Anti-ice / Anti-mist, built-in heater and air circulating system available
• Easy to install with quick and simple electrical connections
• Exceeds IP66 and NEMA 4X Specifications
• Offer network service QoS
• Vandal-resistant option available (polycarbonate)
